Automatic Tying Carton Strapping Machine Pp Belt Packing

Name: Automatic Tying Carton Strapping Machine Pp Belt Packing
Brand: SOOME
Price: 1 USD

Quality Automatic Tying Carton Strapping Machine Pp Belt Packing wholesale

Brand Name : SOOME

Model Number : SMDB-QZD-1000

Certification : CE

Place of Origin : Cangzhou, China

MOQ : 1set

Price : Negotiation

Payment Terms : T/T, L/C, Western Union

Supply Ability : 40sets per month

Delivery Time : 25-30days after deposit

Packaging Details : Wrapped with film or in wooden case

Application : Packing or wrapping field

Tying method : Automatically

Belt material : PP belt

Belt specs. : W5-9mm, T0.5-0.8mm

Tying speed : Max. 1.5s

Min. tying size : W80 x H60mm

Machine weight : 120kgs

Machine size : 1360x660x1792mm

Power : 600W, 10A

Voltage : 1P, 220V, 50HZ

Contact Now

Automatic cartons tying machine, pp belt strapping packing machinery

I. General introduction

In the corrugated cartons making and transportation process, strapping / Packing cartons is the last procedure.

First use Corrugated Production Line to produce corrugated paperboard in different sizes, thickness, specifications and quality. Second use Thin Blade Slitter Scorer machine to slit into needed sizes and crease lines. Third put the sheets on Flexo Printer Slotter Rotary Die-cutter machine to print needed words, patterns and colors, and slot or die-cut into different shapes. Forth, put the printed cardboard on Folder Gluer machine to make into cartons. Fifth, after glued the cardboard into cartons, need strapping machine to pack them well waiting for transportation or selling.

As for the strapping machine, it has several name like baler, wrapping machine, packing machine, etc. And the packing machine one type use PP belt and another type use PE belt. This Automatic high speed strapping machine we introduced here is using PP belt.

II. Machine details

Machine size	L1360 x W660 x H1792MM
Loading container size	L1500 x W800 x H1900MM
Working table height	850MM
Weight capacity	80KGS
Machine weight	120KGS
Tying speed	≦1.5s / belt
Tying specs.	Min. Tying size: W80 x H60mm; Max. Size as per frame size
Adhesive method	Hot melt
Tying tightness	0-45KG
Power	600W, 10A
Voltage	1P, 220V, 50HZ
Standard packing frame	W650 x H500MM
Optional	Can choose packing frame size, belt width

III. Requirements of belt

Raw material	Polypropylene (PP)
Specification	Belt W 5-9MM, Belt thickness 0.5-0.8MM
Belt tray width	170-190MM
Belt tray inner core diameter	200-210MM
Belt tray outer diameter	400-450MM
Max. Tying strength	45KGS

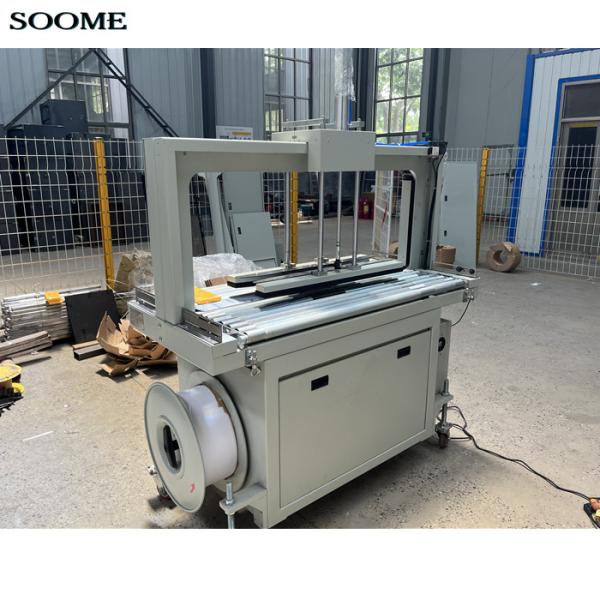

IV. Detailed photo

Automatic Tying Carton Strapping Machine Pp Belt Packing
