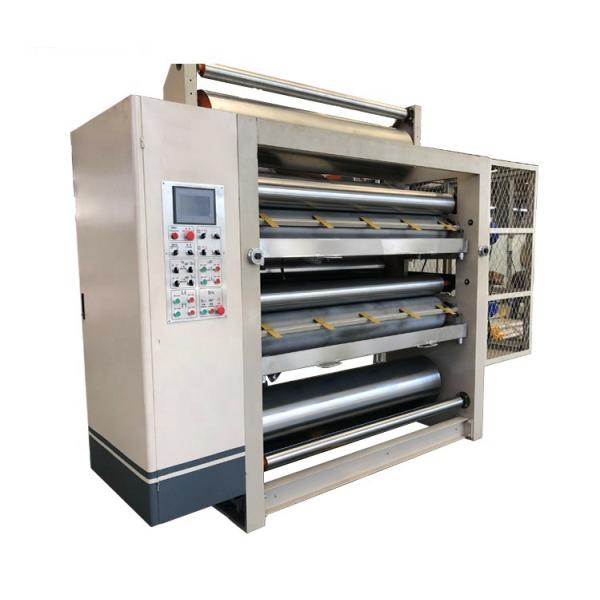

Duplex Glue Machine For 3/5/ Layer Corrugated Paperboard Production Line
Machine information:
1. After the glue roller surface quenched,tempered,ground and engraved pit,then doing balancing,making coating evenly, consume less glue
2. Glue roller controled by frequency motor , the inverter control ensures glue line speed is synchronous with double facer, and can also operate independently
3. Plc control the glue amount,automatically adjusted according to the production speed Automatic circulation for glue, avoiding glue precipitation
4. Pneumatic presses paper structure, adjust the gap by the electric
5. Measure the speed signal of the double facer to achieve synchronous operation
Machine Technical Parameter:
| Working Width | 2200mm |
| Steam Pressure | 0.8-1.3Mpa |
| Glue roller | Φ242mm |
| Doctor Roller | Φ124mm |
| Paper roller | Φ70m |
| Glue rollers frequency motor | 3KW |
| Glue quantity adjustment motor | 250W |
| Motor for adjusting the Gap | 250W |
| Glue pump motor | 2.2KW |
Main Components Brand:
| Components Name | Brand |
| Preheater Roller | Dezhou |
| Bearing | Haerbin |
| Pneumatic Components | Zhejiang |
| Main Motor | Schneider |
| Reducer | Taiwan |
| Synchronous Belt | Shanghai |
| Steam Trap | Beijing |
| Glue Pump | Hebei |
Our company:
Hebei Soome Packaging Machinery is one of the professional manufacturer of corrugated carton machinery in north of China which dates from 1995.
We are specialized in developing and producing thin blade slitter scorer, cutting machines and folder gluer machine for corrugated cardboard, provide the whole dryend solution of production line. And we also manufacture carton production line, which is composed of hydraulic mill roll stand, pre-heater, single facer,stacker as well as printing die cutting machine and laminator, etc.
We also have the patent and our special thin blades for Slitter Scorer and other high quality accessories for corrugated carton machine.
The enthusiasm on cooperating with clients all over the world made us develop high quality machinery with reasonable price for you. We are always providing our best service after sales to get the long term cooperation with customer.
Expect to work with you in the near future!
