1 Colors Ink Printing Slotting Die Cutting Machine

HEBEI SOOME PACKAGING MACHINERY CO.,LTD
Contact Now

1 Colors Ink Printing Slotting Die Cutting Machine

  • 1
  • 2

Brand Name : SOOME

Model Number : SMYS-1224

Certification : CE certification

Place of Origin : Hebei China

MOQ : 1 set

Price : negotiated

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 100sets per month

Delivery Time : 25-40days after deposit

Packaging Details : Wrapped with film or in wooden case

Warranty : 1 Year

Condition : New

Machine max speed : 120 pieces/min

Max feeding size (L×W) : 1200mm×2600mm

Min feeding size (L×W) : 350mm×650mm

Skip feeding size : 1400*2400mm

Max printing size : 1200*2400mm

Thickness of paperboard : 1.8-12mm

Color register : 0.5-0.75

Thickness of print plate : 7.2mm

Contact Now

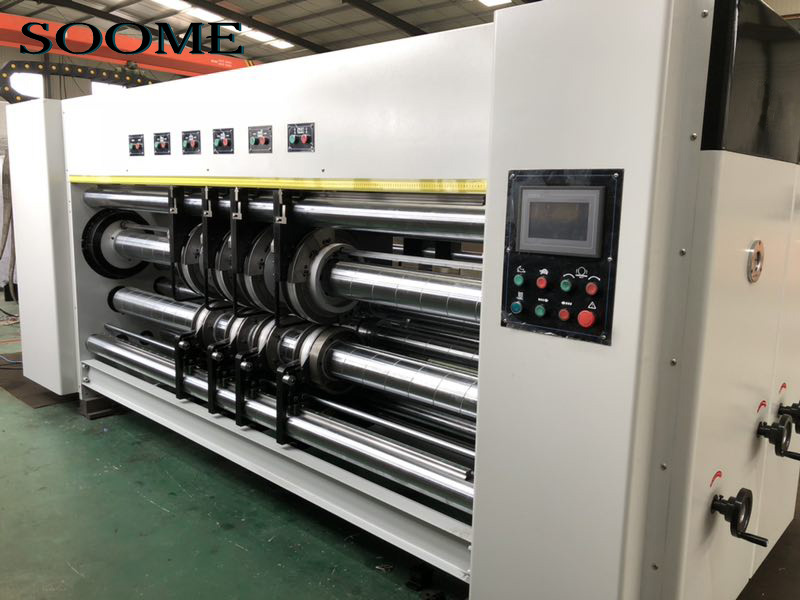

1224 Model 1 Colors Ink Printing Slotting Die Cutting Machine

Function and characteristics:

Printing unit:

The surface of the steel pipe is ground, pressed and plated with hard chromium.

Balance correction, smooth operation

Mesh number for the first group of 220 mesh, customers can choose the mesh number or ceramic stick.

Technological Parameter

Name of Parameter Unit Specification
GYK900X1800 GYK1200X2200 GYK1600X2400
Inside Width mm 2100 2500 2700
Working speed Pieces/min 120 160 150
Max Feed size mm 900x1800 1200x2200 1600x2400
Min Feed size mm 280x600 350x600 420x700
Feed paper skip mm 1100x1800 1500x2200 1700x2300
Max print size mm 840x1700 1150x2200 1600x2200
Print Precision mm +-/0.75 +-/0.75 +-/0.75

Feeding-unit:

1. Lead edge feeding type.

2. Vacuum absorption assist paper feeding ensure stable high-speed operation. The air volume can be adjusted according to the camber of the paperboard.

Air suction auxiliary paper feeding, 7.5KW frequency conversion fan, according to different bending conditions of cardboard, the air volume can be adjusted to ensure smooth paper supply. (The valve adjusts the air volume)

1 Colors Ink Printing Slotting Die Cutting Machine

1 Colors Ink Printing Slotting Die Cutting Machine
