Cassette Single Facer Machine Change Roller Fast Automatic Corrugated Machine
Machine description:
Single facer is design for producing single-face corrugated paper:This machine is cassette type design, easy and quick to change flute in 15mins with dolly by hydraulic system
1. Quick change rolls in 15mins, while replacing the corrugated rolls, the whole complete set of additional rolls with cassette is delivered into the machine by the carriage and matched the hydraulic motor to be fixed on the base of the machine by hydraulic system. Quickly and easily complete the corrugated roller replacement.
2. Corrugated roller are made of 48CrMo high quality alloy steel, with heated treatment. The surface is well treated by grind and plated tungsten carbide.
3. The corrugating rolls, pressure roll and glue roll are adopted with high stability of the airbag control system, also with pneumatic control buffer effect.
4. Adopt glue width motorized dividing to match the paper width. Idle running motor for glue applicator roll to avoid glue dry. Adjustment for gap between glue roll and doctor roll.
5. The moveable type glue unit is convenient to clean and maintain.
6. Easy operation control system. Touch screen with colorful drawing display operation state, easy and simple to handle.
7. Bulit-in pre-conditioner with production spraying device for the medium moisture and temperature adjustment.
8. Bearing for corrugated rollers, and pressure roller adopt high-temperature lubricate grease to keep running smoothly and durably.
Technical parameters
Corrugated Rollers:
| Diameter | Φ280mm |
| Material | 48CrMo high quality alloy steel, rigidity HRC55°-58° |
| Processing Way | After quenching and tempering,The surface of upper-lower roller is ground, then plating chrome or tungsten carbide |
| Control Way | Airbag control Lifting Up-down |
| Driving Way | frequency motor |
| Way of Transmit cardboard | Vacuum Cover adsorbable style, Height pressure Draw fan with noise deadening device |
| Way of Bearing lubricating | High temperature grease |
| Fulte Type | (U/V) ACBEF(According to customers requirements) |
Press Rollers:
| Diameter | Φ320mm |
| Material | Carbon steel (MS)45# |
| Processing Way | After quenching and tempering,The surface of roller is ground, then plating chrome |
| Control Way | Airbag control Lifting Up-down |
| Way of Bearing lubricating | High temperature grease |
Glue Rollers:
| Diameter | Φ240mm |
| Material | Carbon steel (MS)45# |
| Processing Way | Surface is ground,inscribed with 25 lines of pitted mesh,then plated chrome |
| Driving Way | frequency motor |
| Way of Bearing lubricating | High temperature grease |
| Glue Supply | Aatomatic glue circulating system(storage tank+glue pump);PLC automatic control glue and electric adjust glue width;Independent glue unite |
Preheater Rollers:
| Diameter | Φ320mm |
| Material | seamless steel tube |
| Processing Way | After quenching and tempering,The surface of roller is ground, then plating chrome |
Product Tags:
|
|

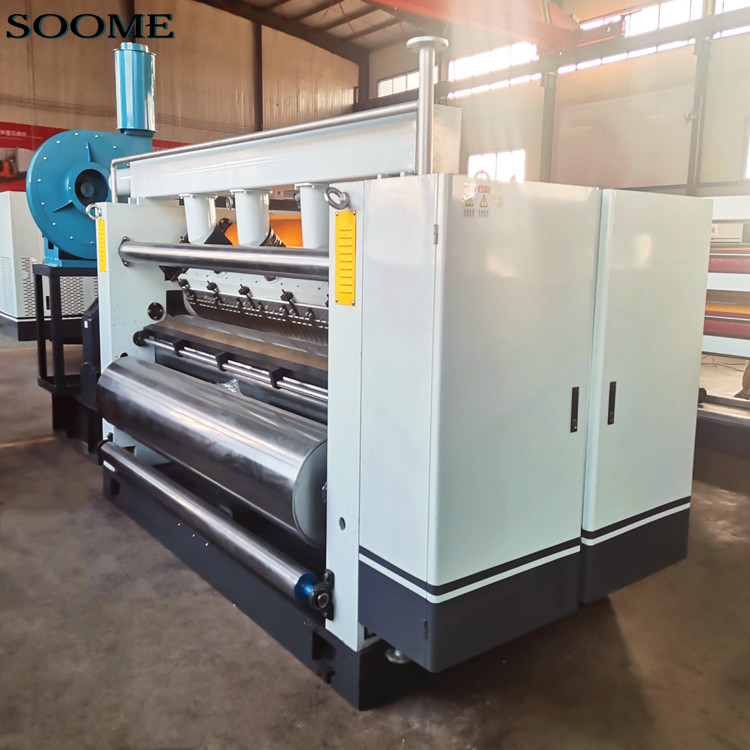

Cassette Change Roller 180m/Min Single Facer Corrugated Machine Images
|
