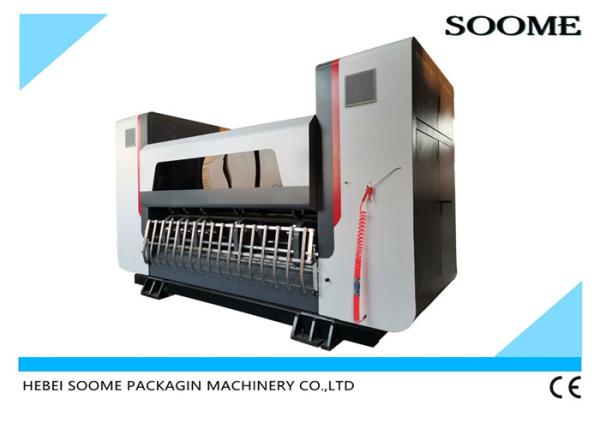

Cardboard Computerized Slitter Scorer Machine

Name: Cardboard Computerized Slitter Scorer Machine
Brand: SOOME
Price: 1 USD

Quality Cardboard Computerized Slitter Scorer Machine wholesale

Brand Name : SOOME

Model Number : SMNC-BNC

Certification : CE

Place of Origin : Made in China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, T/T, MoneyGram

Supply Ability : 25 sets per month

Delivery Time : 14 days after deposit

Packaging Details : wooden case or film.

Product Name : Computerized slitter scorer

Application : slitting and scoring

Keywords : slitter scorer machine

Usage : slitting and scoring paperboard

Voltage : 220V/380V/440V

Condition : New

Contact Now

Corrugated Carton Box Packing Cardboard Computerized Slitter Scorer Machine

Summarize

This kind of thin blade slitter scorer machine was controlling the operation of the machine by computer and the cylinder at the same time, computer-control can adjust the thin blades and scorers right around the left, the thin blades were controlled up and down by pneumatic adjustment of the cylinder.

Features and Characteristics

1. Individual step motor and controller on each slitter and scorer sets, quick and accurate order change.

2. Slitters and scorers are inverter controlling, speed synchronizes with board speed.

3. Electric score-depth adjust.

4. Alloyed steel thin-blades, sharp and long life of over million meters, auto sharpening.

5. Adopting standard motorized body left-right rectification system.

6. Individual sealed electrical cabinet, dust-free, constant temperature and humidity ensure longer life.

Technical Parameters

Model	2200	1800	2500
Efficiency Width	2250mm	1850mm	2550mm
Min.Slitting Width	135mm	135mm	135mm
Min.Creasing Width	0mm	0mm	0mm
Blade Model	2601581.3mm	2601581.3mm	2601581.3mm
Power	20kw	16kw	21kw
Depth of Creasing	12mm	12mm	12mm
Design Speed	200m/min	150m/min	250m/min

Cardboard Computerized Slitter Scorer Machine

Product Tags:

cardboard manufacturing machine

corrugated box manufacturing machine

Cardboard Computerized Slitter Scorer Machine Images
